760033936 | 600G2-1U-UP-SD
- Available in:
- Asia
- Australia/New Zealand
- China
- India

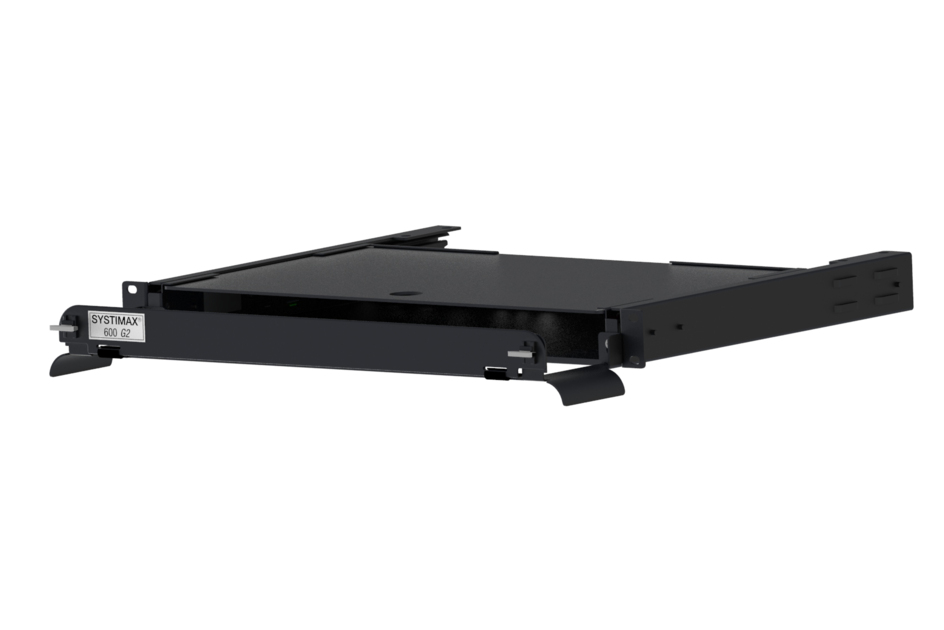

G2 1U Sliding Faceplate Panel
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | China | India |
| Regional Availability Note | Discontinued in all other regions since December 14, 2019 and replaced by 760234738 | SD-1U-FX-UP in North America, Latin America and EMEA |
| Portfolio | CommScope® |
| Product Type | Fiber patch panel |
General Specifications
| Application | Accepts one G2 front faceplate | Accepts two RoloSplices with three trays each |
| Color | Black |
| Interface, front | Unloaded |
| Rack Units | 1 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 0 |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Width | 482.6 mm | 19 in |
| Depth | 457.2 mm | 18 in |
Material Specifications
| Finish | Powder coated |
| Material Type | Steel |
Packaging and Weights
| Weight, net | 4.082 kg | 9 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | China | India |
| Regional Availability Note | Discontinued in all other regions since December 14, 2019 and replaced by 760234738 | SD-1U-FX-UP in North America, Latin America and EMEA |
| Portfolio | CommScope® |
| Product Type | Fiber patch panel |
General Specifications
| Application | Accepts one G2 front faceplate | Accepts two RoloSplices with three trays each |
| Color | Black |
| Interface, front | Unloaded |
| Rack Units | 1 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 0 |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Width | 482.6 mm | 19 in |
| Depth | 457.2 mm | 18 in |
Material Specifications
| Finish | Powder coated |
| Material Type | Steel |
Packaging and Weights
| Weight, net | 4.082 kg | 9 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
