RR2VV-6533AR6VB-V2
12-port sector/multibeam antenna, 4x 698–960 MHz 65° HPBW and 8x 1710–2690 MHz 4x 33°HPBW, 6x RET
Features and Benefits
- Reliable Performance: The hybrid twin-beam design ensures perfectly symmetrical arrays within the antenna, delivering consistent pattern performance across all ports. Optimized for 4T4R (4x MIMO) configurations, it maintains dependable functionality across the entire band for both sector and twin-beam applications
- Improved Network Efficiency: Designed for six-sector deployment in the mid-band, it enhances network capacity and optimizes spectrum usage
- Flexible Configuration: Features an integrated pluggable RET and retractable tilt scale indicators, enabling precise and versatile adjustments
Specifications
General Specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 1597 mm | 62.874 in |
| Net Weight, antenna only | 24.3 kg | 53.572 lb |

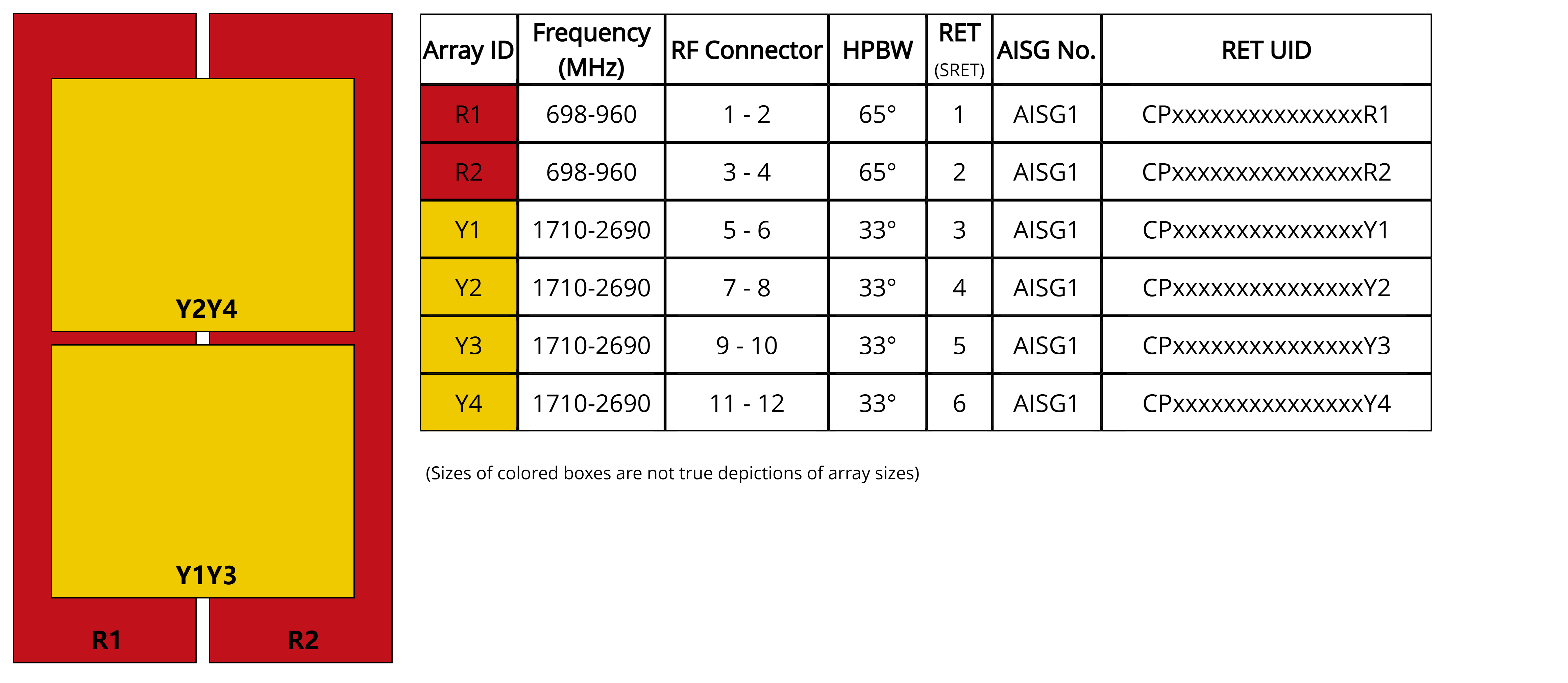

Array Layout
| Click on image to enlarge. |

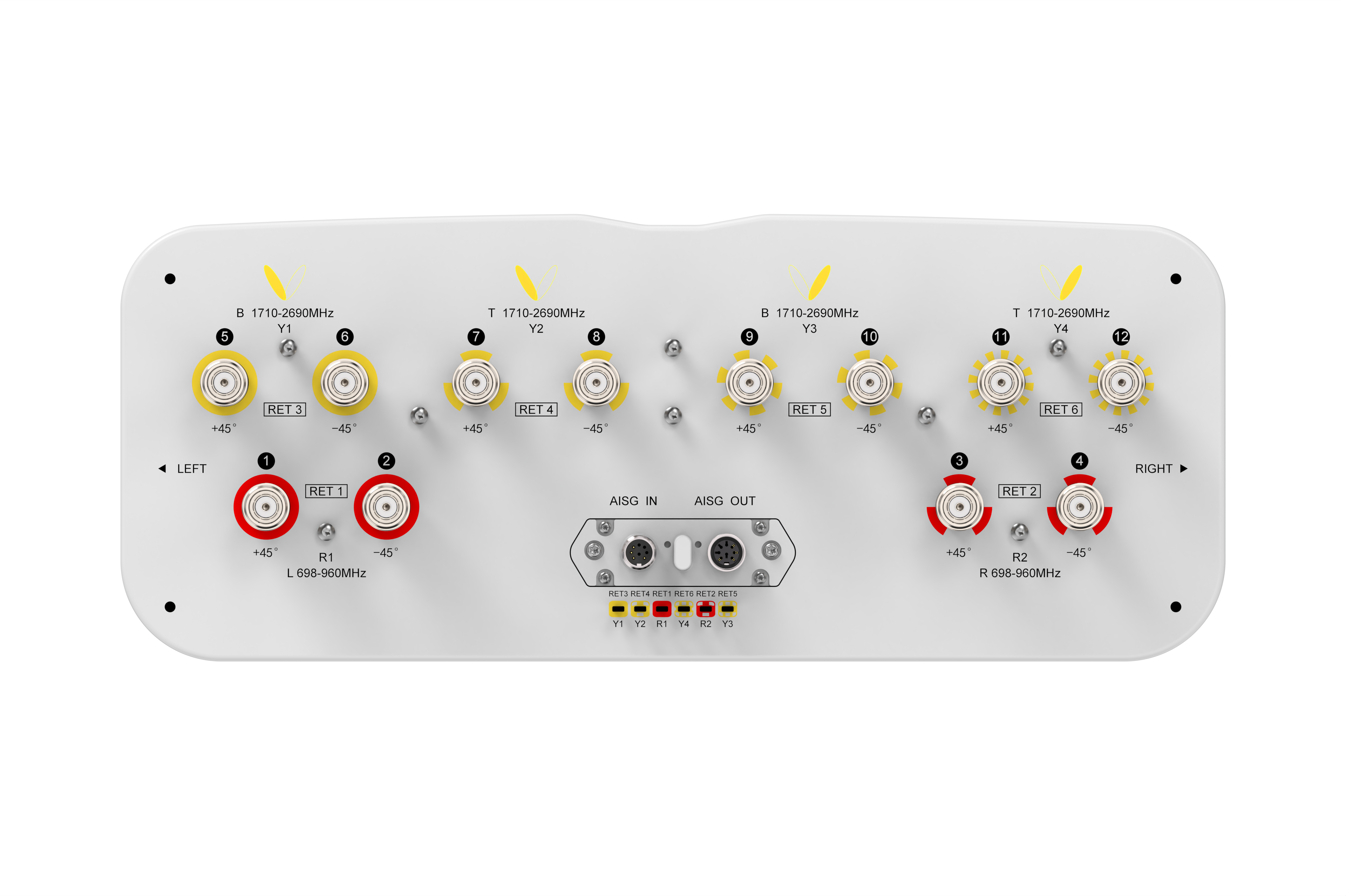

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical Specifications
| R1,R2 | R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1990 | 1920–2170 | 2300–2500 | 2490–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Gain, dBi | 14.3 | 14.7 | 15.2 | 17.0 | 17.7 | 17.9 | 17.9 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | ±27 | |||
| Beamwidth, Horizontal, degrees | 64 | 61 | 59 | 32 | 29 | 27 | 26 |
| Beamwidth, Vertical, degrees | 12 | 10.9 | 9.7 | 10.7 | 9.4 | 8.3 | 8 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 16 | 17 | 17 | 17 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 23 | 23 | 23 | 24 | 28 | 29 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 15 | 15 | 15 | 15 | |||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1990 | 1920–2170 | 2300–2500 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 14.1 | 14.5 | 15.0 | 16.8 | 17.5 | 17.7 | 17.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±0.5 | ±1.2 | ±0.9 | ±0.8 | ±1.1 |
| Beamwidth, Horizontal Tolerance, degrees | ±9 | ±7 | ±7 | ±3 | ±2 | ±2 | ±2 |
| Beamwidth, Vertical Tolerance, degrees | ±1 | ±1 | ±0.8 | ±0.8 | ±0.9 | ±0.8 | ±0.7 |
| CPR at Boresight, dB | 20 | 26 | 24 | 17 | 19 | 18 | 15 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 589.0 N @ 150 km/h (132.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 197.0 N @ 150 km/h (44.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 485.0 N @ 150 km/h (109.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 573 mm | 22.559 in |
| Depth, packed | 272 mm | 10.709 in |
| Length, packed | 1817 mm | 71.535 in |
| Weight, gross | 33.2 kg | 73.193 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 1597 mm | 62.874 in |
| Net Weight, antenna only | 24.3 kg | 53.572 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical Specifications
| R1,R2 | R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1990 | 1920–2170 | 2300–2500 | 2490–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Gain, dBi | 14.3 | 14.7 | 15.2 | 17.0 | 17.7 | 17.9 | 17.9 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | ±27 | |||
| Beamwidth, Horizontal, degrees | 64 | 61 | 59 | 32 | 29 | 27 | 26 |
| Beamwidth, Vertical, degrees | 12 | 10.9 | 9.7 | 10.7 | 9.4 | 8.3 | 8 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 16 | 17 | 17 | 17 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 23 | 23 | 23 | 24 | 28 | 29 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 15 | 15 | 15 | 15 | |||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1990 | 1920–2170 | 2300–2500 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 14.1 | 14.5 | 15.0 | 16.8 | 17.5 | 17.7 | 17.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±0.5 | ±1.2 | ±0.9 | ±0.8 | ±1.1 |
| Beamwidth, Horizontal Tolerance, degrees | ±9 | ±7 | ±7 | ±3 | ±2 | ±2 | ±2 |
| Beamwidth, Vertical Tolerance, degrees | ±1 | ±1 | ±0.8 | ±0.8 | ±0.9 | ±0.8 | ±0.7 |
| CPR at Boresight, dB | 20 | 26 | 24 | 17 | 19 | 18 | 15 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 589.0 N @ 150 km/h (132.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 197.0 N @ 150 km/h (44.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 485.0 N @ 150 km/h (109.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 573 mm | 22.559 in |
| Depth, packed | 272 mm | 10.709 in |
| Length, packed | 1817 mm | 71.535 in |
| Weight, gross | 33.2 kg | 73.193 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
