RR3VV-6520D-R5
16-port sector/multibeam antenna, 4x 694–960 MHz 2x 65° HPBW and 12x 1695–2690 MHz 6x 20° HPBW, 5x RET
Features and Benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
- The three-beam array enables the configuration of up to nine sectors in mid bands in a regular three faces site
- The 65° HPBW pattern in low band keeps the traditional three sector coverage layers in the sub 1 GHz bands
Specifications
General Specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (3) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, antenna only | 64 kg | 141.096 lb |
Array Layout
| Click on image to enlarge. |

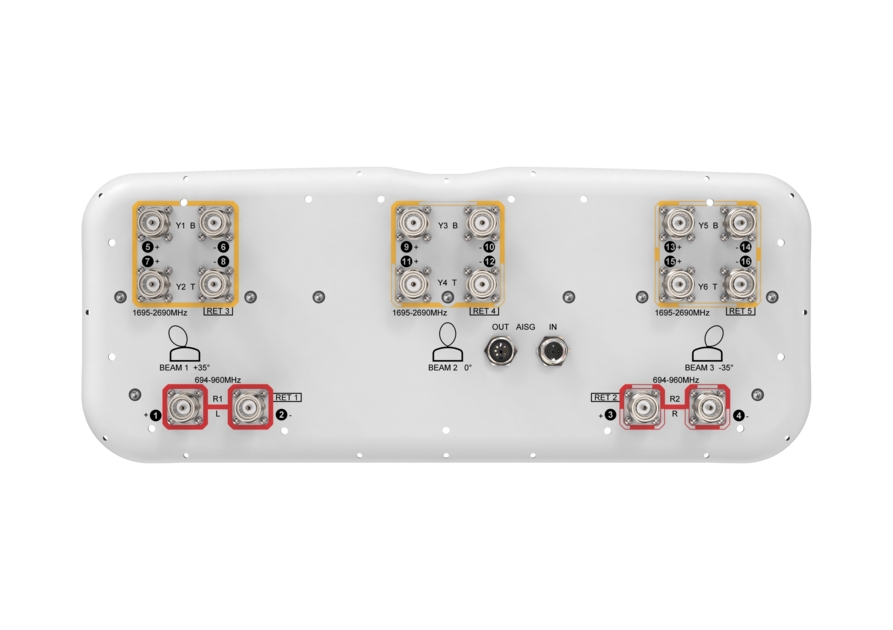

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
| BASTA Version, electrical | BASTA v12 |
Electrical Specifications
| R1-R2 | R1-R2 | R1-R2 | Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | |
| Frequency Band, MHz | 698–790 | 790–890 | 890–960 | 1710–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-16 | 5-16 | 5-16 | 5-16 |
| Gain, dBi | 15.7 | 15.8 | 16.0 | 19.7 | 20.5 | 20.9 | 20.9 |
| Beam Centers, Horizontal, degrees | ±0 ±35 | ±0 ±35 | ±0 ±35 | ±0 ±35 | |||
| Beamwidth, Horizontal, degrees | 74 | 69 | 67 | 24 | 21 | 19 | 17 |
| Beamwidth, Vertical, degrees | 8.9 | 8 | 7.2 | 7.2 | 6.6 | 5.7 | 5.4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 17 | 16 | 17 | 17 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 29 | 32 | 32 | 33 | 30 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical Specifications
| BASTA Version, mechanical | BASTA v12 |
Packaging and Weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2935 mm | 115.551 in |
| Weight, gross | 86.7 kg | 191.141 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (3) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, antenna only | 64 kg | 141.096 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
| BASTA Version, electrical | BASTA v12 |
Electrical Specifications
| R1-R2 | R1-R2 | R1-R2 | Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | |
| Frequency Band, MHz | 698–790 | 790–890 | 890–960 | 1710–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-16 | 5-16 | 5-16 | 5-16 |
| Gain, dBi | 15.7 | 15.8 | 16.0 | 19.7 | 20.5 | 20.9 | 20.9 |
| Beam Centers, Horizontal, degrees | ±0; ±35 | ±0; ±35 | ±0; ±35 | ±0; ±35 | |||
| Beamwidth, Horizontal, degrees | 74 | 69 | 67 | 24 | 21 | 19 | 17 |
| Beamwidth, Vertical, degrees | 8.9 | 8 | 7.2 | 7.2 | 6.6 | 5.7 | 5.4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 17 | 16 | 17 | 17 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 29 | 32 | 32 | 33 | 30 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical Specifications
| BASTA Version, mechanical | BASTA v12 |
Packaging and Weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2935 mm | 115.551 in |
| Weight, gross | 86.7 kg | 191.141 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
