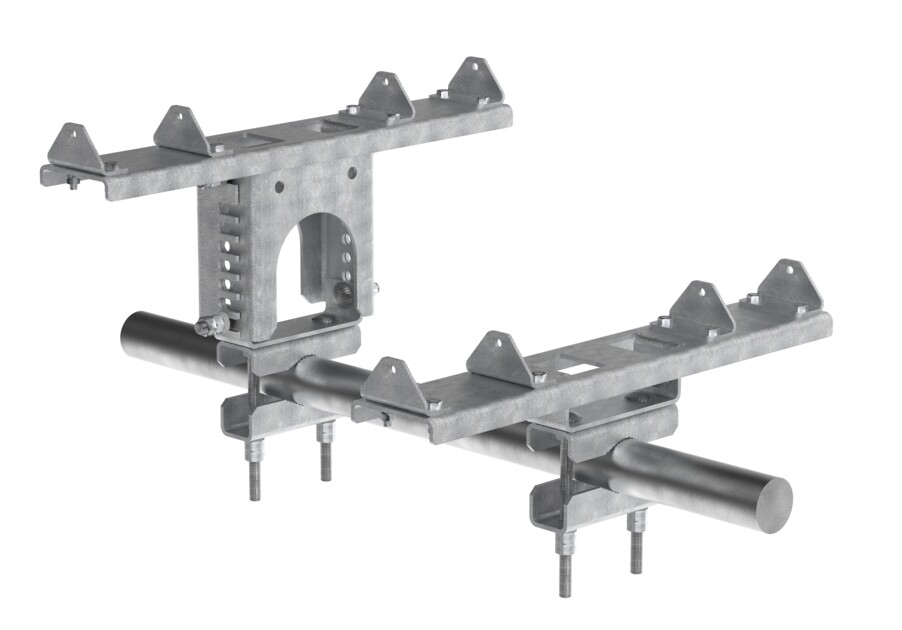

BSAMNT-SBS-3-2

Side-By-Side Mounting Kit to mount two 498mm (19.6inch) or 498mm (19.6inch) with 457mm (18inch) platform antennas on a pipe with 60 – 115 mm (2.375 - 4.5 inch) diameter

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Ensures consistent distance of 2.4 inches/60mm between the two 498mm antennas radomes while 3.2 inches/80mm between 498+457mm antennas radomes for each site
Forces both antennas to point to the same boresight direction

Specifications

Product Classification

Product Type

Side mounting kit

General Specifications

Application	Outdoor
Color	Silver

Dimensions

Compatible Diameter, maximum	115 mm \| 4.528 in
Compatible Diameter, minimum	60 mm \| 2.362 in
Weight, net	30.6 kg \| 67.461 lb

Material Specifications

Material Type

Galvanized steel

Packaging and Weights

Included	Brackets \| Hardware
Packaging quantity	1
Weight, gross	35.3 kg \| 77.823 lb

Regulatory Compliance/Certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
