CMAX-HM4-60X1-I53
Base Product: DIRECTIONAL-ANTENNAS

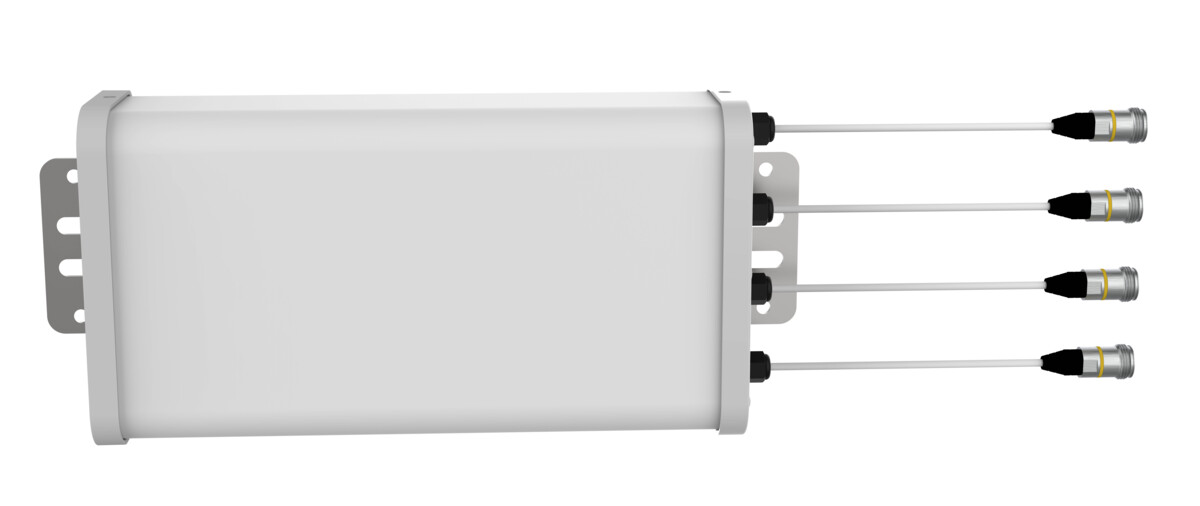

Low PIM Directional High Capacity Venue Under the Seat 4x4 MIMO Antenna, 1695–2700, 3400-4200 MHz
Specifications
Product Classification
| Product Type | Under-the-seat stadium antenna |
General Specifications
| Application | Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 4x4 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 4 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 175 mm | 6.890 in |
| Depth | 86 mm | 3.386 in |
| Length | 345 mm | 13.583 in |
| Pigtail Length | 500 mm | 19.685 in |
Electrical Specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 1695 – 2700 MHz | 3400 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical Specifications
| Frequency Band, MHz | 1695–2200 | 2200–2700 | 3400–3800 | 3800–4200 |
| Gain, dBi | 7.8 | 7.7 | 7.2 | 7.2 |
| Beamwidth, Horizontal, degrees | 69 | 60 | 62 | 72 |
| Beamwidth, Vertical, degrees | 67 | 68 | 65 | 65 |
| Front-to-Back Ratio at 180°, dB | 20 | 20 | 17 | 17 |
| Isolation, Cross Polarization, dB | 16 | 15 | 15 | 15 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 |
Return Loss/VSWR
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 1695–2200 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 2200–2700 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 3400–3800 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 3800–4200 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
Mechanical Specifications
| Wind Loading @ Velocity, maximum | 185.0 N @ 241 km/h (41.6 lbf @ 150 mph) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and Weights
| Height, packed | 195 mm | 7.677 in |
| Width, packed | 250 mm | 9.843 in |
| Length, packed | 485 mm | 19.094 in |
| Included | Mounting bracket |
| Packaging quantity | 1 |
| Weight, gross | 3.2 kg | 7.055 lb |
| Weight, net | 2.5 kg | 5.512 lb |
Product Classification
| Product Type | Under-the-seat stadium antenna |
General Specifications
| Application | Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 4x4 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 4 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 175 mm | 6.890 in |
| Depth | 86 mm | 3.386 in |
| Length | 345 mm | 13.583 in |
| Pigtail Length | 500 mm | 19.685 in |
Electrical Specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 1695 – 2700 MHz | 3400 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical Specifications
| Frequency Band, MHz | 1695–2200 | 2200–2700 | 3400–3800 | 3800–4200 |
| Gain, dBi | 7.8 | 7.7 | 7.2 | 7.2 |
| Beamwidth, Horizontal, degrees | 69 | 60 | 62 | 72 |
| Beamwidth, Vertical, degrees | 67 | 68 | 65 | 65 |
| Front-to-Back Ratio at 180°, dB | 20 | 20 | 17 | 17 |
| Isolation, Cross Polarization, dB | 16 | 15 | 15 | 15 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 |
Return Loss/VSWR
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 1695–2200 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 2200–2700 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 3400–3800 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 3800–4200 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
Mechanical Specifications
| Wind Loading @ Velocity, maximum | 185.0 N @ 241 km/h (41.6 lbf @ 150 mph) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and Weights
| Height, packed | 195 mm | 7.677 in |
| Width, packed | 250 mm | 9.843 in |
| Length, packed | 485 mm | 19.094 in |
| Included | Mounting bracket |
| Packaging quantity | 1 |
| Weight, gross | 3.2 kg | 7.055 lb |
| Weight, net | 2.5 kg | 5.512 lb |
