CO-200-LD
- Available in:
- North America

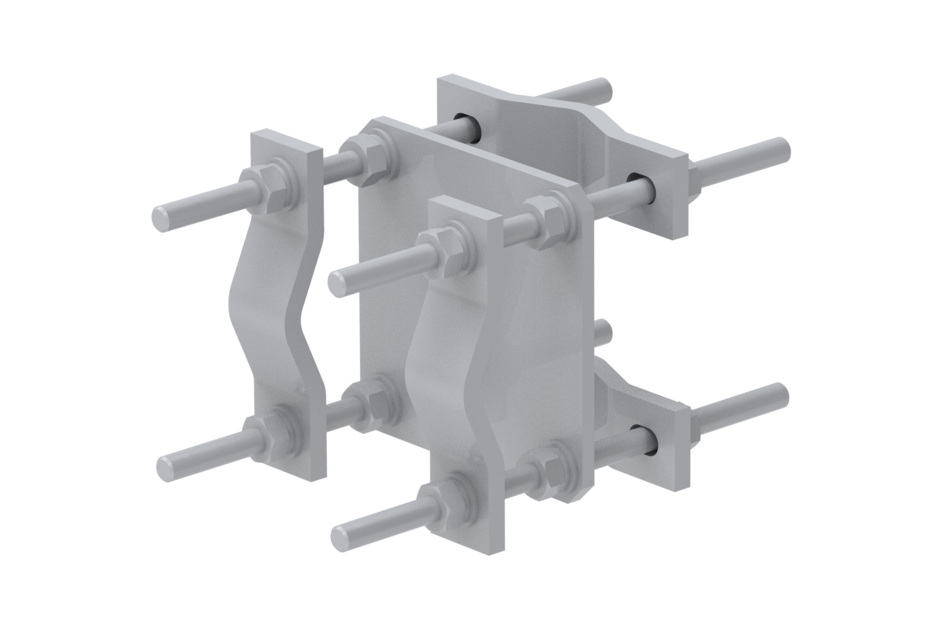

Crossover Plate, Light Duty - joins 2 in to 5 in OD round members (Pipe not included)
Specifications
Product Classification
| Regional Availability | North America |
| Product Type | Clamp plate |
| Ordering Note | ANDREW® standard product (Global) |
| Warranty | One year |
General Specifications
| Mounting | Crossover plate |
| Tower Taper | Non-tapered |
Dimensions
| Height | 254 mm | 10 in |
| Width | 304.8 mm | 12 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Plates |
| Packaging quantity | 1 |
| Weight, net | 7.6 kg | 16.755 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | North America |
| Product Type | Clamp plate |
| Ordering Note | ANDREW® standard product (Global) |
| Warranty | One year |
General Specifications
| Mounting | Crossover plate |
| Tower Taper | Non-tapered |
Dimensions
| Height | 254 mm | 10 in |
| Width | 304.8 mm | 12 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Plates |
| Packaging quantity | 1 |
| Weight, net | 7.6 kg | 16.755 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
