860678540-12
Base Product: PIM-GUARD-MOUNTS

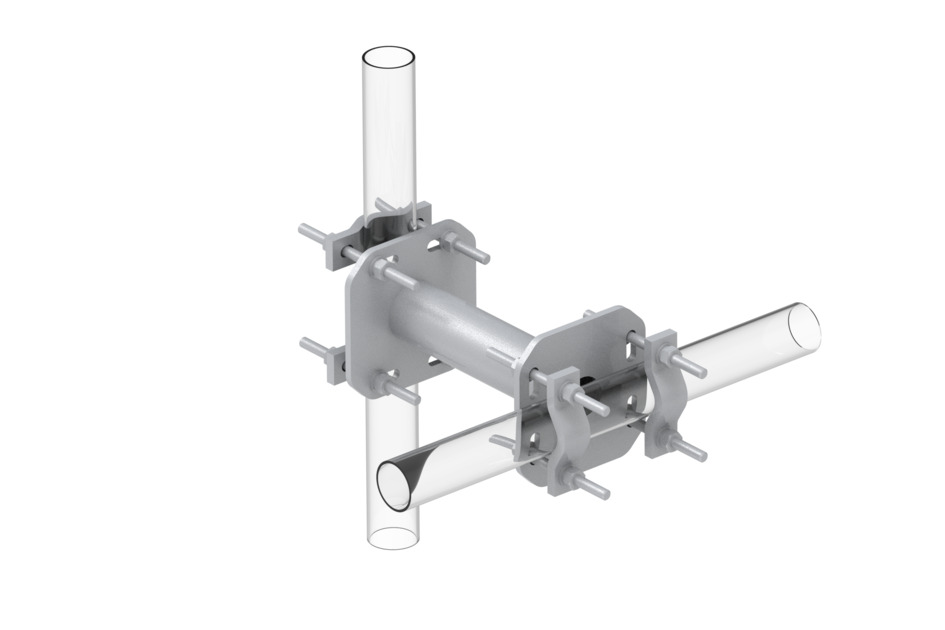

Fixed Distance Skew Fighter - Twelve Inch Standoff
Features and Benefits
Specifications
Product Classification
| Product Type | Support kit |
| Product Brand | PIM-guard |
General Specifications
| Mounting | Round member |
| Pipe, quantity | 0 |
Dimensions
| Mounting Diameter 2, maximum | 88.900 mm | 3.5 in |
| Mounting Diameter 2, minimum | 38.100 mm | 1.5 in |
| Mounting Diameter, maximum | 88.900 mm | 3.5 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Stand-off Distance | 304.800 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@andrew.com or call 800-255-1479 |
Packaging and Weights
| Included | Mounting hardware | Supports |
| Packaging quantity | 1 |
| Weight, net | 16.570 kg | 36.53 lb |
Product Classification
| Product Type | Support kit |
| Product Brand | PIM-guard |
General Specifications
| Mounting | Round member |
| Pipe, quantity | 0 |
Dimensions
| Mounting Diameter 2, maximum | 88.900 mm | 3.5 in |
| Mounting Diameter 2, minimum | 38.100 mm | 1.5 in |
| Mounting Diameter, maximum | 88.900 mm | 3.5 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Stand-off Distance | 304.800 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@andrew.com or call 800-255-1479 |
Packaging and Weights
| Included | Mounting hardware | Supports |
| Packaging quantity | 1 |
| Weight, net | 16.570 kg | 36.53 lb |
Documentation & Downloads
Assembly Drawing
Product Specification
Assembly Drawing
Product Compliance Documentation
Product Specification
