MC-TR4-14
Base Product: MOUNT-ACCESSORIES

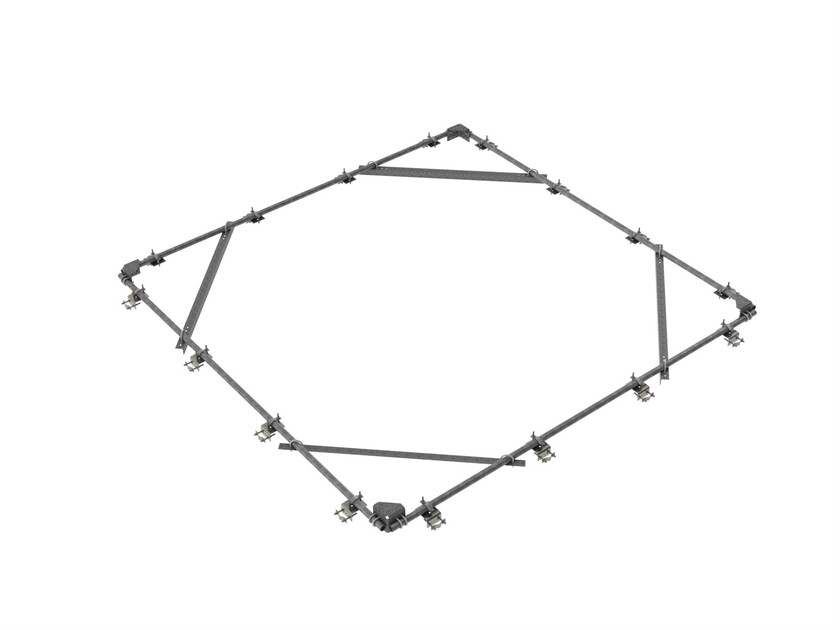

Four Sector Top Rail Kit, 14 ft 6 in face
Specifications
Product Classification
| Product Type | Co-location platform |
General Specifications
| Sectors, quantity | 4 |
Dimensions
| Height | 101.6 mm | 4 in |
| Face Width | 4.42 m | 14.5 ft |
| Platform Width | 4419.6 mm | 174 in |
| Width | 4419.6 mm | 174 in |
| Length | 60.96 mm | 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Corner clips | Crossover angles | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 230 lb | 507.063 lb |
Product Classification
| Product Type | Co-location platform |
General Specifications
| Sectors, quantity | 4 |
Dimensions
| Height | 101.6 mm | 4 in |
| Face Width | 4.42 m | 14.5 ft |
| Platform Width | 4419.6 mm | 174 in |
| Width | 4419.6 mm | 174 in |
| Length | 60.96 mm | 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Corner clips | Crossover angles | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 230 lb | 507.063 lb |
