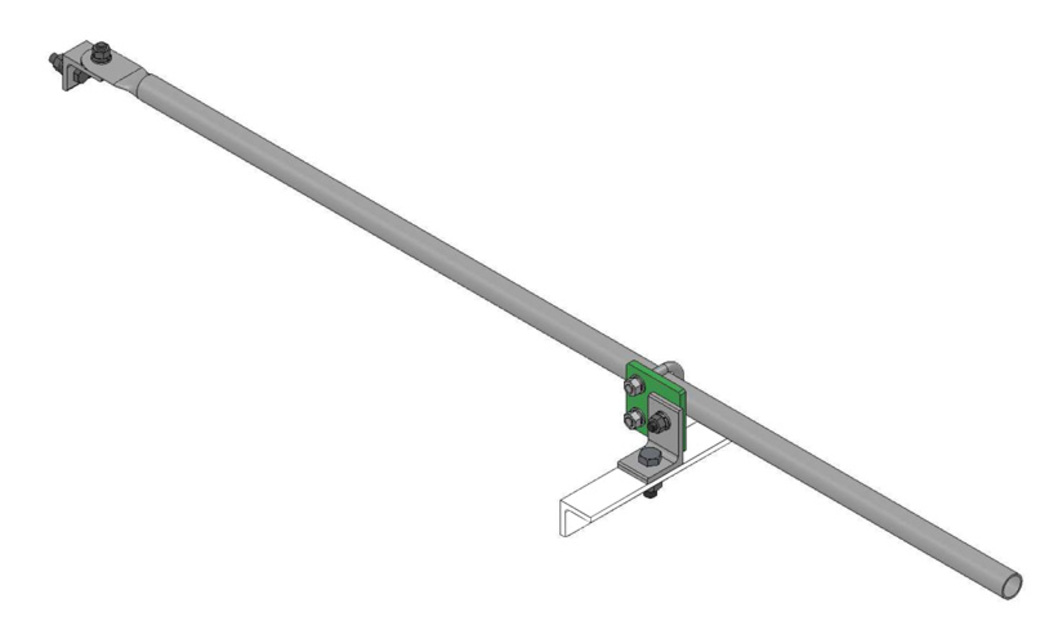

VSTRUT-P3KIT
Inboard Side Strut Kit, 1.55m long, for 3 ft, 4 ft and 6 ft microwave antennas
Specifications
Product Classification
| Product Type | Strut kit |
Dimensions
| Mounting Pipe Length | 1.551 m | 5.09 ft |
| Diameter, nominal | 0.9 m | 3 ft | 1.2 m | 4 ft | 1.8 m | 6 ft |
Material Specifications
| Material Type | Galvanized steel |
Mechanical Specifications
| Aligning Function | Fixed |
Packaging and Weights
| Height, packed | 48.26 mm | 1.9 in |
| Width, packed | 48.26 mm | 1.9 in |
| Length, packed | 1699.26 mm | 66.9 in |
| Included | Bracket | Hardware | Strut |
| Volume | 3916508.296 mm³ | 239 cc |
| Weight, gross | 6 kg | 13.228 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Strut kit |
Dimensions
| Mounting Pipe Length | 1.551 m | 5.09 ft |
| Diameter, nominal | 0.9 m | 3 ft | 1.2 m | 4 ft | 1.8 m | 6 ft |
Material Specifications
| Material Type | Galvanized steel |
Mechanical Specifications
| Aligning Function | Fixed |
Packaging and Weights
| Height, packed | 48.26 mm | 1.9 in |
| Width, packed | 48.26 mm | 1.9 in |
| Length, packed | 1699.26 mm | 66.9 in |
| Included | Bracket | Hardware | Strut |
| Volume | 3916508.296 mm³ | 239 cc |
| Weight, gross | 6 kg | 13.228 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
