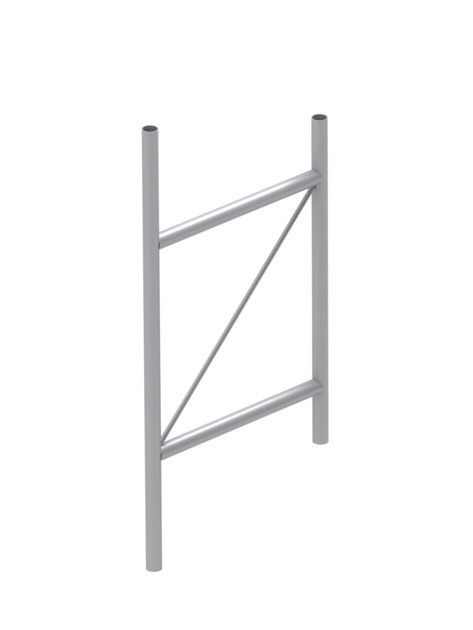

P-300
Panel Antenna Stand-Off Bracket, 36 in
Specifications
Product Classification
| Product Type | Stand-off mount |
General Specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 1778 mm | 70 in |
| Width | 76.2 mm | 3 in |
| Length | 914.4 mm | 36 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 28.1 kg | 61.95 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product Classification
| Product Type | Stand-off mount |
General Specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 1778 mm | 70 in |
| Width | 76.2 mm | 3 in |
| Length | 914.4 mm | 36 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 28.1 kg | 61.95 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
