P-400

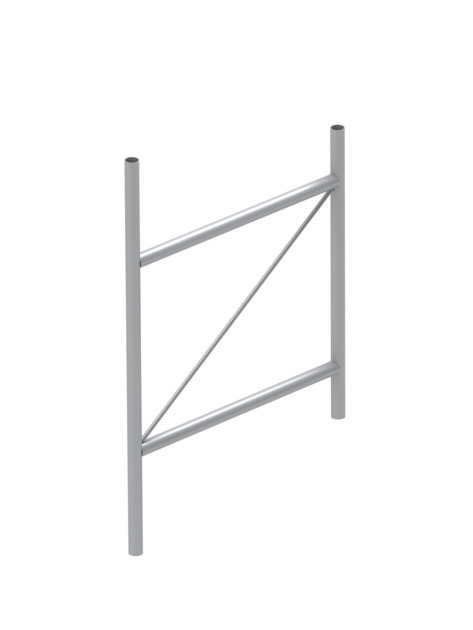

Panel Antenna Stand-Off Bracket, 48 in
Specifications
Product Classification
| Product Type | Stand-off mount |
General Specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 1778 mm | 70 in |
| Width | 76.2 mm | 3 in |
| Length | 1219.2 mm | 48 in |
| Stand-off Distance | 1219.2 mm | 48 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 31.9 kg | 70.327 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Stand-off mount |
General Specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 1778 mm | 70 in |
| Width | 76.2 mm | 3 in |
| Length | 1219.2 mm | 48 in |
| Stand-off Distance | 1219.2 mm | 48 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 31.9 kg | 70.327 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
