HSG-M29-ADPT
Base Product: HSG-ADAPTER-SERIES

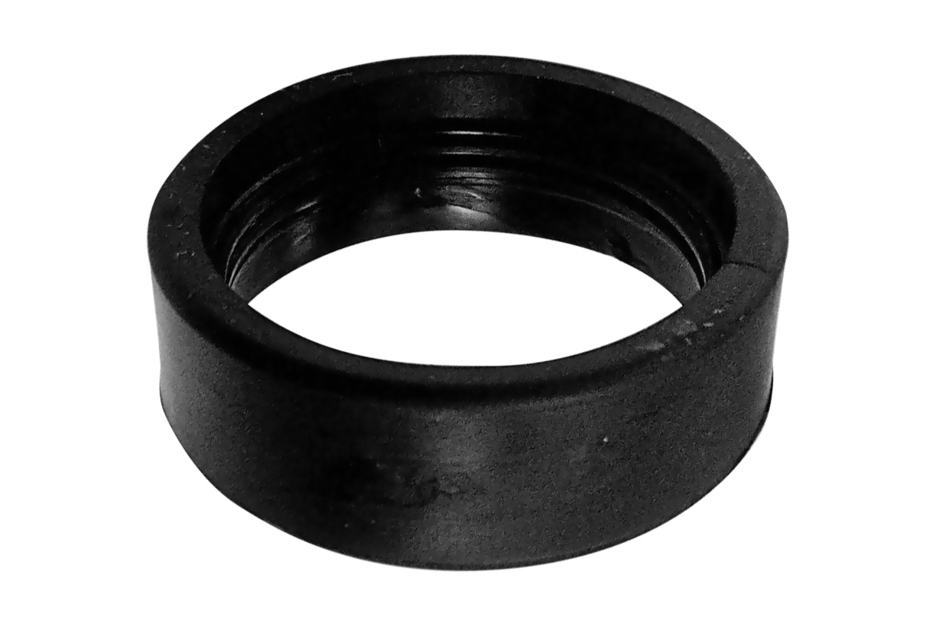

HELIAX® SureGuard® sealing adpapter for fully threaded device ports that will form a weather seal with the HELIAX® SureGuard Boots (HSG-LDF4, HSG-LDF4-DR, HSG-FSJ4 and HSG-FSJ4-DR)
Specifications
Product Classification
| Product Type | Weatherproofing boot |
| Product Brand | HELIAX® | SureGuard® |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Application | Provides moisture seal for fully threaded device ports |
| Applications per Kit | Ten device connections |
| Color | Black |
| Device Port Interface | 7-16 DIN Female |
| Thread Size | M29 |
Dimensions
| Width | 35.5 mm | 1.398 in |
| Length | 12 mm | 0.472 in |
| Inner Diameter | 28.3 mm | 1.114 in |
Material Specifications
| Material Type | Thermoplastic elastomer (TPE) |
Environmental Specifications
| Installation temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| UV Resistance Test Method | ASTM G154-12a |
| UV Resistance, minimum with no degradation | ≥1000 hours |
| Weather Resistance Test Method | IEC 60068-2-11 | IEC 60529:2001, IP68 |
Packaging and Weights
| Height, packed | 25.5 mm | 1.004 in |
| Width, packed | 120 mm | 4.724 in |
| Length, packed | 140 mm | 5.512 in |
| Packaging quantity | 10 |
| Weight, gross | 37 g | 0.082 lb |
Product Classification
| Product Type | Weatherproofing boot |
| Product Brand | HELIAX® | SureGuard® |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Application | Provides moisture seal for fully threaded device ports |
| Applications per Kit | Ten device connections |
| Color | Black |
| Device Port Interface | 7-16 DIN Female |
| Thread Size | M29 |
Dimensions
| Width | 35.5 mm | 1.398 in |
| Length | 12 mm | 0.472 in |
| Inner Diameter | 28.3 mm | 1.114 in |
Material Specifications
| Material Type | Thermoplastic elastomer (TPE) |
Environmental Specifications
| Installation temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| UV Resistance Test Method | ASTM G154-12a |
| UV Resistance, minimum with no degradation | ≥1000 hours |
| Weather Resistance Test Method | IEC 60068-2-11 | IEC 60529:2001, IP68 |
Packaging and Weights
| Height, packed | 25.5 mm | 1.004 in |
| Width, packed | 120 mm | 4.724 in |
| Length, packed | 140 mm | 5.512 in |
| Packaging quantity | 10 |
| Weight, gross | 37 g | 0.082 lb |
