PWRT-102-L2-GRY
- Available in:
- North America

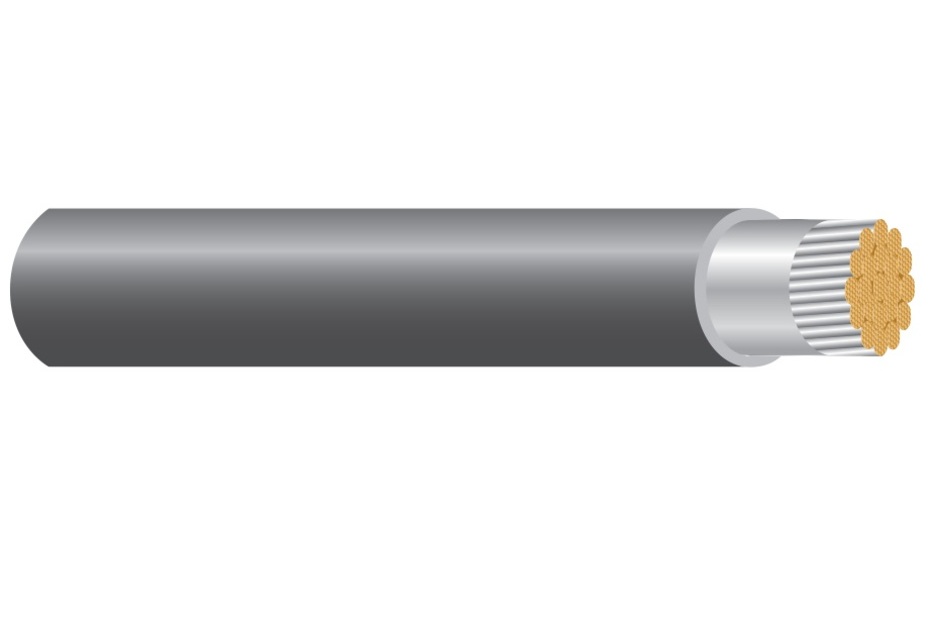

HELIAX® Single Conductor Power Cable, 2AWG Conductor, LSZH, L2, Gray Jacket, Telcordia GR-347-CORE, IEC including 60674 and 60332, 105 degrees C Dry, 60 degrees C Wet
Specifications
Product Classification
| Regional Availability | North America |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | PWRT |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 1 |
| Construction Type | Discrete power cable |
| Jacket Color | Gray |
| Jacket Color, singles | Gray |
| Outer Shield (Tape) Material | Opaque Mylar Tape |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 7.67 mm per 165 strands |
| Diameter Over Jacket, nominal | 11.350 mm | 0.4468504 in |
| Jacket Thickness | 1.372 mm | 0.054 in |
| Conductor Gauge | 2 AWG |
| Conductor Gauge, singles | 2 AWG |
Cross Section Drawing
| Click on image to enlarge. |
Electrical Specifications
| Conductor dc Resistance | 0.566 ohms/km | 0.172516794 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material Specifications
| Conductor Material | Tinned copper |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical Specifications
| Minimum Bend Radius, loaded | 91.440 mm | 3.6 in |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Flame Test Listing | FT4-ST1 | VW-1 |
| Flame Test Method | UL44 |
| Smoke Test Method | UL44 |
Packaging and Weights
| Cable weight | 375.002 kg/km | 251.99 lb/kft |
Product Classification
| Regional Availability | North America |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | PWRT |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 1 |
| Construction Type | Discrete power cable |
| Jacket Color | Gray |
| Jacket Color, singles | Gray |
| Outer Shield (Tape) Material | Opaque Mylar Tape |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 7.67 mm per 165 strands |
| Diameter Over Jacket, nominal | 11.350 mm | 0.4468504 in |
| Jacket Thickness | 1.372 mm | 0.054 in |
| Conductor Gauge | 2 AWG |
| Conductor Gauge, singles | 2 AWG |
Electrical Specifications
| Conductor dc Resistance | 0.566 ohms/km | 0.172516794 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material Specifications
| Conductor Material | Tinned copper |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical Specifications
| Minimum Bend Radius, loaded | 91.440 mm | 3.6 in |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Flame Test Listing | FT4-ST1 | VW-1 |
| Flame Test Method | UL44 |
| Smoke Test Method | UL44 |
Packaging and Weights
| Cable weight | 375.002 kg/km | 251.99 lb/kft |
