APG-F4-NM-350

Base Product: SURGE-ARRESTORS

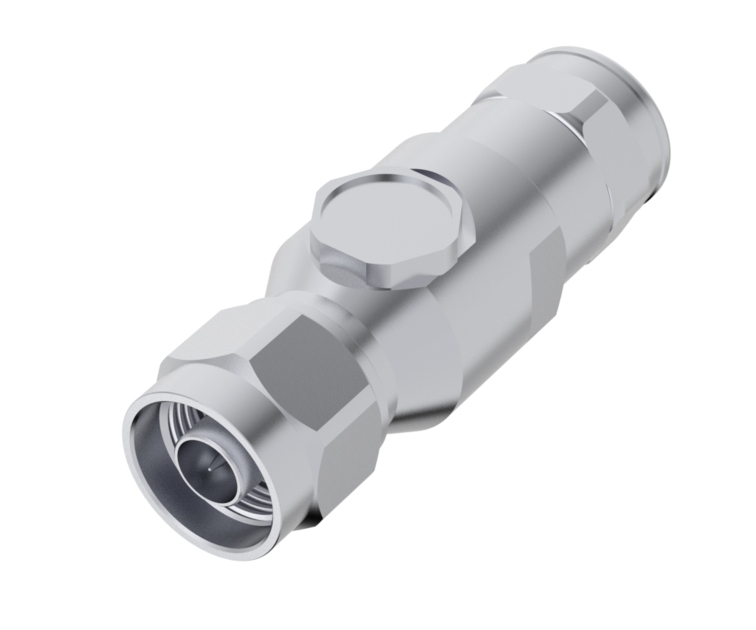

Arrestor Gas Tube Surge Arrestor (350 V), 2400–2500 MHz, with interface types N male for 1/2" Superflexible Foam Coaxial Cable

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Product Type Surge arrestor
Ordering Note ANDREW® non-standard product

General Specifications

Device Type dc Pass
Body Style Straight
Inner Contact Attachment Method Captivated
Inner Contact Plating Gold
Interface N Male
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 23.7 mm | 0.933 in
Length 66.7 mm | 2.626 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Insertion Loss, typical 0.2 dB
Average Power 40 W
Connector Impedance 50 ohm
Gas Tube Voltage 350 V
Lightning Surge Current 5 kA
Lightning Surge Current Waveform 8/20 waveform
Operating Frequency Band 2400 – 2500 MHz

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
2400–2500 MHz 1.296 17.80

Mechanical Specifications

Attachment Durability 25 cycles
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5
Mechanical Shock Test Method MIL-STD-202F, Method 213B, Test Condition C

Environmental Specifications

Operating Temperature -40 °C to +100 °C (-40 °F to +212 °F)
Storage Temperature -40 °C to +100 °C (-40 °F to +212 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Corrosion Test Method MIL-STD-202, Method 101, Test Condition B
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method MIL-STD-202, Method 106
Thermal Shock Test Method MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C
Vibration Test Method GR 2846-CORE
Water Jetting Test Mating Mated
Water Jetting Test Method IEC 60529:2001, IP66

Packaging and Weights

Weight, net 0.097 kg | 0.214 lb
