FP-01SDDCGGDD
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

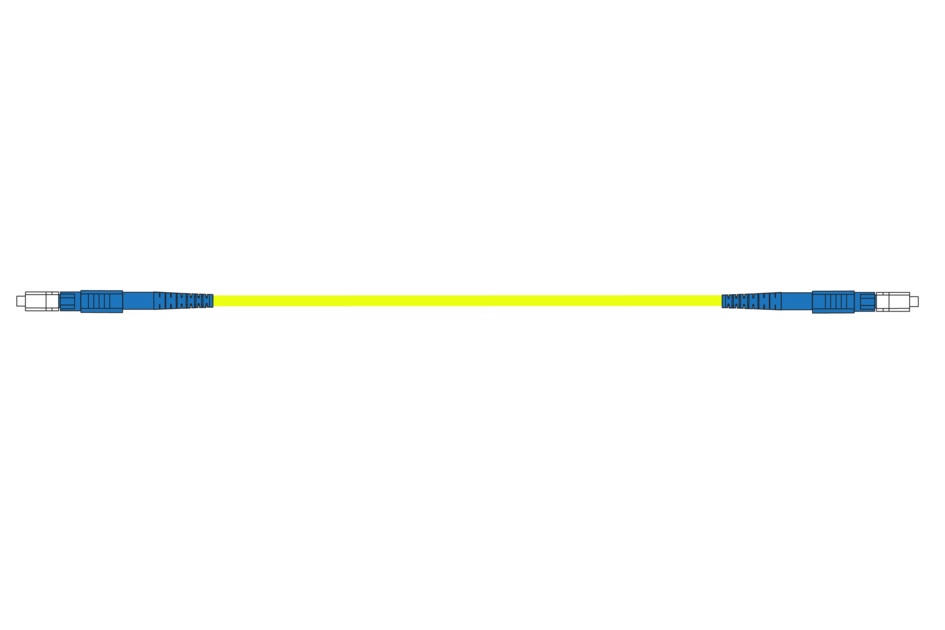

HELIAX® Patch Cord, 1F Singlemode, Yellow LSZH/Riser, SLC (UPC)-SLC (UPC)
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | FP |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Color, connector A | Blue |
| Color, connector B | Blue |
| Construction Type | Simplex patch cord |
| Interface, Connector A | LC/UPC |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Body Style, connector B | Straight |
| Jacket Color | Yellow |
| Total Fibers, quantity | 1 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 15 |
| Diameter Over Jacket | 1.6 mm | 0.063 in |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Indoor |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | FP |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Color, connector A | Blue |
| Color, connector B | Blue |
| Construction Type | Simplex patch cord |
| Interface, Connector A | LC/UPC |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Body Style, connector B | Straight |
| Jacket Color | Yellow |
| Total Fibers, quantity | 1 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 15 |
| Diameter Over Jacket | 1.6 mm | 0.063 in |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Indoor |
