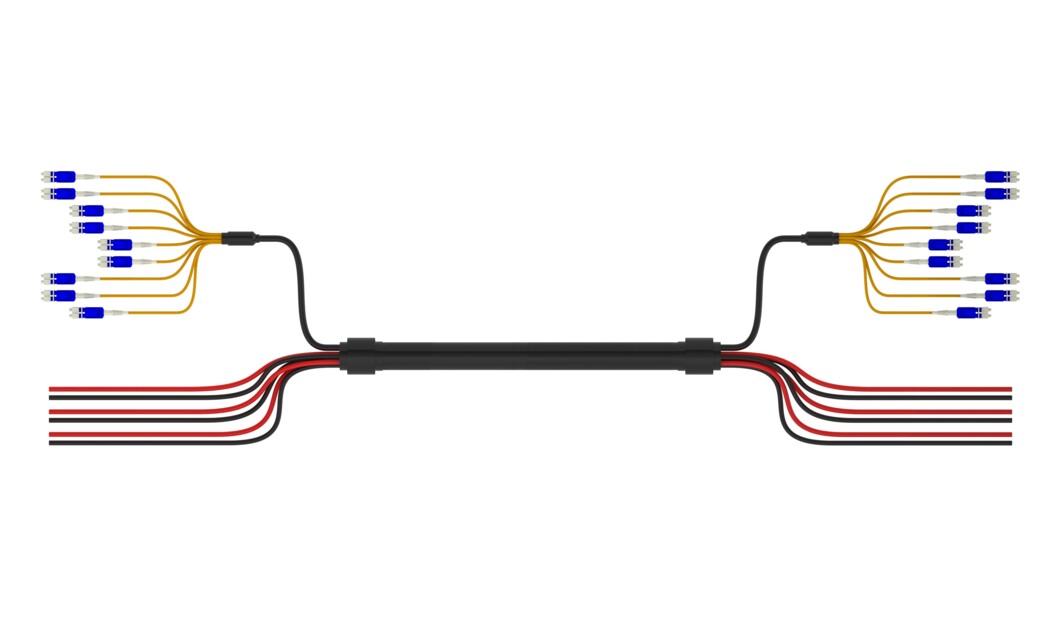

HELIAX® Hybrid Cable Assembly, 3x9, 6 X 4AWG 19-Strand Conductors, 18 SM Fiber, DLC-DLC, PVC jacket, Cu Foil Shield
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | China | EMEA | Europe | India | Latin America | Middle East/Africa | North America |
| Product Type | Hybrid cable assembly |
| Product Brand | HELIAX® |
| Product Series | HT |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Conductors, quantity | 6 |
| Connector A, quantity | 9 |
| Connector B, quantity | 9 |
| Construction Type | Hybrid standard trunk |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Standard |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | DLC |
| Interface Feature, connector B | Standard |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 18 |
Dimensions
| Cable Assembly Length Range (ft) | 2 – 999 |
| Cord Length | 0.725 m | 2.379 ft |
| Diameter Over Jacket, maximum | 29.72 mm | 1.170 in |
| Center Conductor Gauge | 4 AWG |
Material Specifications
| Jacket Material | PVC |
Mechanical Specifications
| Minimum Bend Radius | 594.4 mm | 23.402 in |
| Minimum Bend Radius, furcation | 60 mm | 2.362 in |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.75 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and Weights
| Cable weight | 1.8 kg/m | 1.210 lb/ft |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | China | EMEA | Europe | India | Latin America | Middle East/Africa | North America |
| Product Type | Hybrid cable assembly |
| Product Brand | HELIAX® |
| Product Series | HT |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Conductors, quantity | 6 |
| Connector A, quantity | 9 |
| Connector B, quantity | 9 |
| Construction Type | Hybrid standard trunk |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Standard |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | DLC |
| Interface Feature, connector B | Standard |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 18 |
Dimensions
| Cable Assembly Length Range (ft) | 2 – 999 |
| Cord Length | 0.725 m | 2.379 ft |
| Diameter Over Jacket, maximum | 29.72 mm | 1.170 in |
| Center Conductor Gauge | 4 AWG |
Material Specifications
| Jacket Material | PVC |
Mechanical Specifications
| Minimum Bend Radius | 594.4 mm | 23.402 in |
| Minimum Bend Radius, furcation | 60 mm | 2.362 in |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.75 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and Weights
| Cable weight | 1.8 kg/m | 1.210 lb/ft |
