DPJ-208-JUMPER

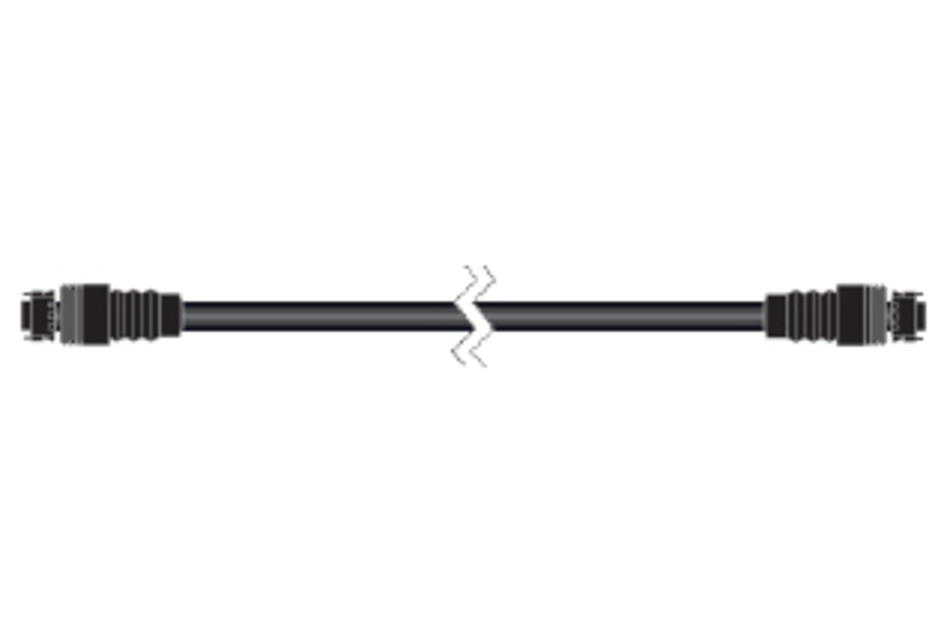

HELIAX® Direct, Power cable Assembly Nokia compatible power connector end 1, Ericsson compatible power connector end 2, 1 meter

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Power cable assembly
Product Brand	HELIAX®
Product Series	DPJ
Ordering Note	ANDREW® non-standard product

Cable Type	Power
Conductor Type, singles	Stranded
Conductors, quantity	2
Construction Type	Direct power tail \| Non-armored
Interface, Connector A	1-pair plug
Interface, Connector B	1-pair plug
Jacket Color	Black
Supported Application	Industrial

Diameter Over Conductor, singles, specific	0.1570 in per 168 strands
Diameter Over Dielectric	6.147 mm \| 0.242 in
Diameter Over Drain Wire, specific	2.5700 in per 7 strands
Diameter Over Ground Wire	3.2 mm \| 0.126 in
Diameter Over Jacket, nominal	16.154 mm \| 0.636 in
Diameter Over Shield (Braid)	0.47 mm \| 0.019 in
Conductor Gauge, singles	8 AWG
Drain Wire Gauge	12 AWG
Ground Wire Gauge	10 AWG

Conductor dc Resistance	2.198 ohms/km \| 0.67 ohms/kft
Conductor dc Resistance Note	Maximum value based on a standard condition of 20 °C (68 °F)
Operating Voltage, maximum	600 V
Safety Voltage Rating	600 V

Conductor Material	Tinned copper
Dielectric Material	PVC
Drain Wire Material	Tinned copper
Filler Material	Polypropylene
Insulation Material, singles	PVC
Jacket Material	PVC
Outer Shield (Braid) Coverage	65 %
Outer Shield (Braid) Material	Tinned copper

Operating Temperature	-40 °C to +90 °C (-40 °F to +194 °F)
Environmental Space	UV resistant for outdoor and/or direct burial installations
Safety Standard	NEC Article 336 (Type TC)

Cable weight

431.568 kg/m | 290.000 lb/ft
