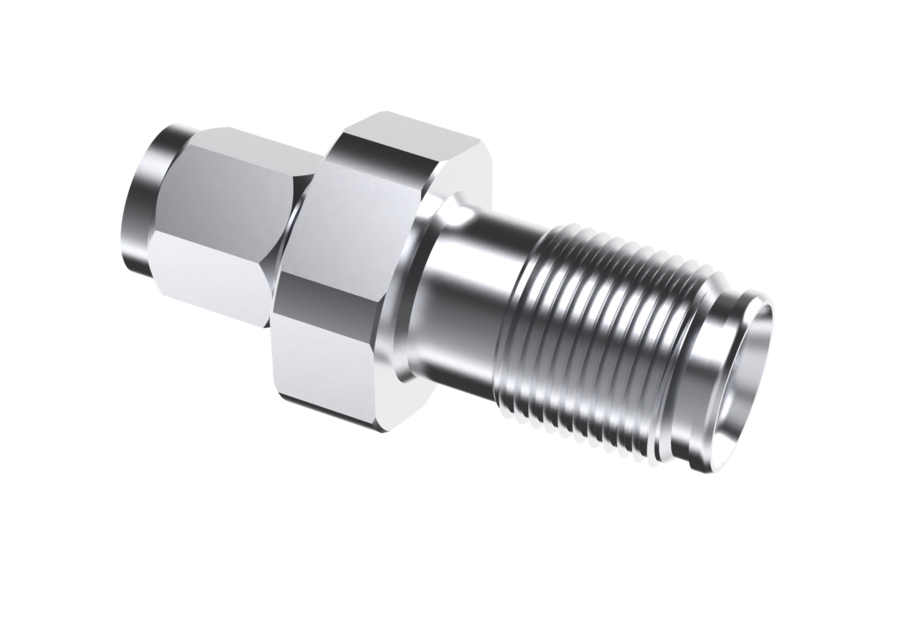

TA-XFSM
NEX10 Female to SMA Male Adapter
Specifications
Product Classification
| Product Type | Adapter |
General Specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | NEX10 Female |
| Interface 2 | SMA Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 31.1 mm | 1.224 in |
| Diameter | 15.1 mm | 0.594 in |

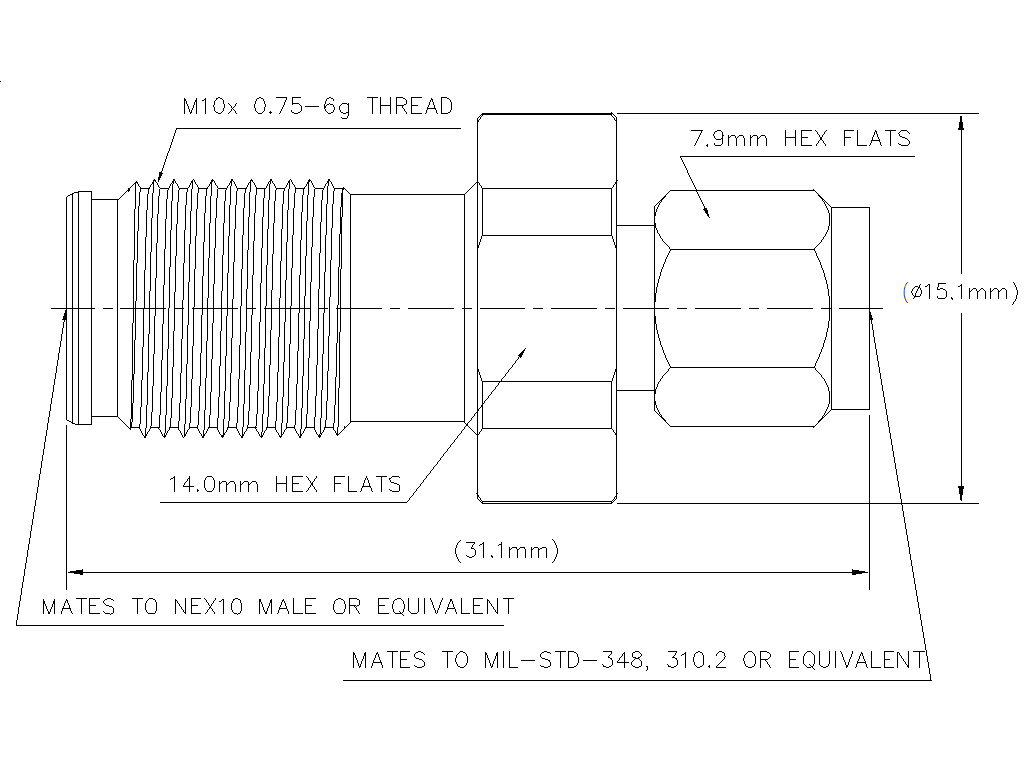

Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Average Power at Frequency | 100.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| RF Operating Voltage, maximum (vrms) | 1000 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.052 | 32.00 |
| 3000–6000 MHz | 1.083 | 28.00 |
Mechanical Specifications
| Insertion Force | 22 N | 4.946 lbf |
| Insertion Force Method | IEC 61169-15:9.3.5 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-15:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 14.77 g | 0.033 lb |
Product Classification
| Product Type | Adapter |
General Specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | NEX10 Female |
| Interface 2 | SMA Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 31.1 mm | 1.224 in |
| Diameter | 15.1 mm | 0.594 in |
Electrical Specifications
| Average Power at Frequency | 100.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| RF Operating Voltage, maximum (vrms) | 1000 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.052 | 32.00 |
| 3000–6000 MHz | 1.083 | 28.00 |
Mechanical Specifications
| Insertion Force | 22 N | 4.946 lbf |
| Insertion Force Method | IEC 61169-15:9.3.5 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-15:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 14.77 g | 0.033 lb |
