760187179 | 360-E-MOD-B-KIT
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

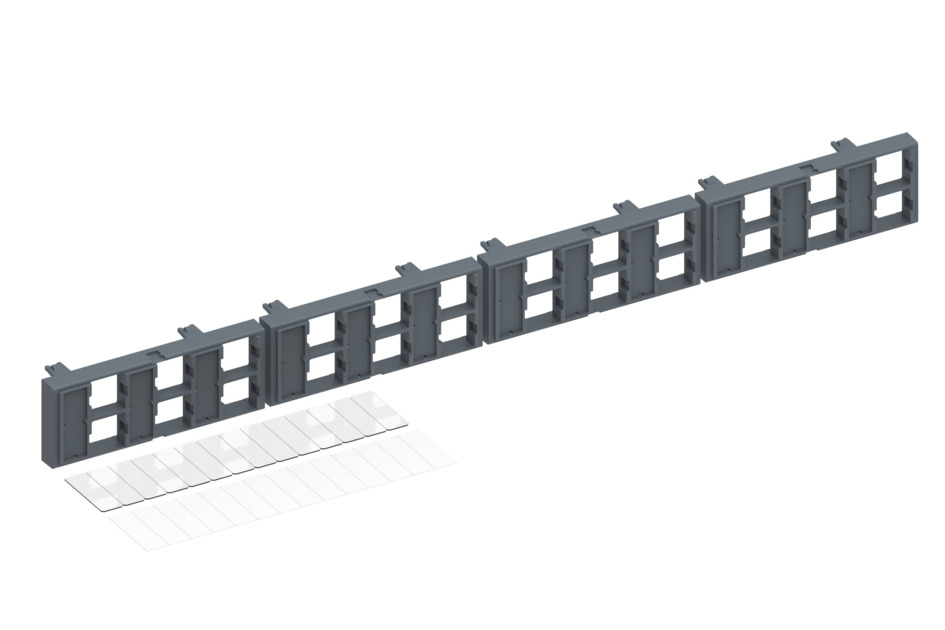

SYSTIMAX 360™ Evolve M Series Bezel, 4 Package
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Bezel |
| Product Brand | SYSTIMAX 360™ |
General Specifications
| ANSI/TIA Category | 5e | 6 | 6A |
| Cable Type | U/UTP (unshielded) |
| Color | Cool gray |
| Total Ports, quantity | 6 |
Dimensions
| Height | 43.434 mm | 1.71 in |
| Width | 106.68 mm | 4.2 in |
| Depth | 20.066 mm | 0.79 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | Powder-coated steel |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 4 |
| Weight, net | 0.059 kg | 0.13 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Bezel |
| Product Brand | SYSTIMAX 360™ |
General Specifications
| ANSI/TIA Category | 5e | 6 | 6A |
| Cable Type | U/UTP (unshielded) |
| Color | Cool gray |
| Total Ports, quantity | 6 |
Dimensions
| Height | 43.434 mm | 1.71 in |
| Width | 106.68 mm | 4.2 in |
| Depth | 20.066 mm | 0.79 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | Powder-coated steel |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 4 |
| Weight, net | 0.059 kg | 0.13 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
