Mid-Range Enterprise-Class Stackable Access/Aggregation Switch with 100GbE
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits

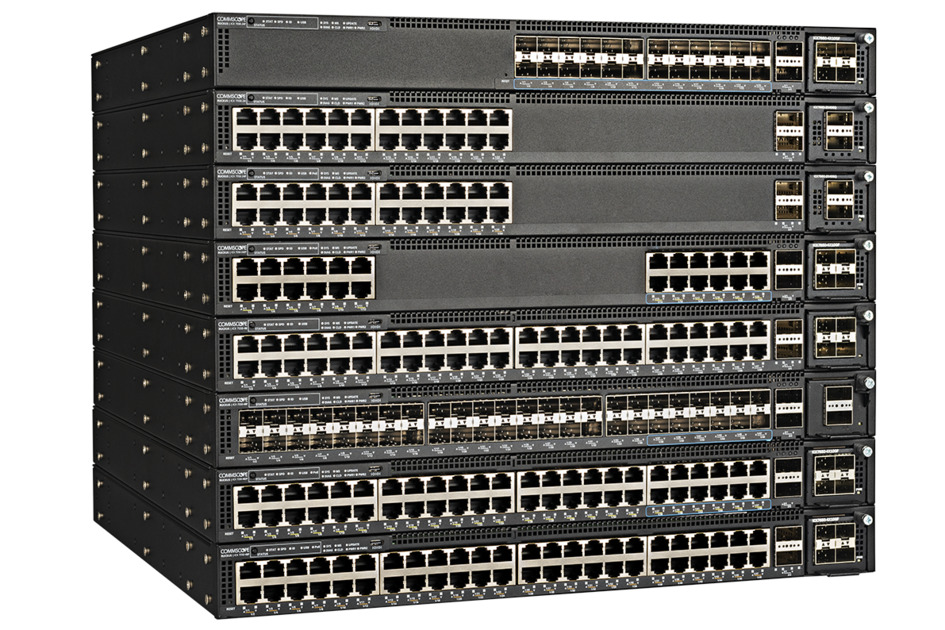

The RUCKUS® ICX® 7550 series of midrange stackable switches are purpose-built to provide wired connectivity at the edge of the network for the latest generation Wi-Fi 6 Access-Points. With multigigabit 2.5/5/10 GbE ports and the latest 802.11bt 90W PoE power, the ICX 7550 delivers the performance, flexibility, and scalability required for the most demanding campus deployment scenarios.
The ICX 7550 offers future-ready 40/100 GbE uplink ports to eliminate bottlenecks between network layers and ensure an uninterrupted user experience in high-density wireless environments.
The ICX 7550 comes in 8 different models that can all be seamlessly stacked together to cover a broad range of deployment scenarios including gigabit or multigigabit network edge and 1/10 gigabit fiber for network aggregation or fiber to the room as well as a smart building network edge with a class-leading 2000W PoE budget and up to 90W of power delivery per port.
The ICX 7550 offers future-ready 40/100 GbE uplink ports to eliminate bottlenecks between network layers and ensure an uninterrupted user experience in high-density wireless environments.
The ICX 7550 comes in 8 different models that can all be seamlessly stacked together to cover a broad range of deployment scenarios including gigabit or multigigabit network edge and 1/10 gigabit fiber for network aggregation or fiber to the room as well as a smart building network edge with a class-leading 2000W PoE budget and up to 90W of power delivery per port.
- Purpose-built wired underlay for Wi-Fi 6 deployments to support the latest generation of smartphones, tablets and laptops
- Up to 3x 4/100 GbE ports for uplink and stacking to minimize network bottlenecks
- Best-in-class-level multigigabit 2.5/5/10 GbE and 1/10 GbE fiber port density to eliminate network bottlenecks
- 90W PoE ports (802.3bt) and 2000W PoE budget to power digital signage, UHD surveillance cameras, PoE lighting and other smart-building devices
- Manageability as part of a unified wired and wireless network using RUCKUS SmartZone, RUCKUS Cloud or RUCKUS Unleashed
- Zero Touch Provisioning and auto-configuration based on predefined network policies
- Integration with RUCKUS Analytics for network intelligence and service assurance
- Dual load sharing power supplies for system power redundancy
- Unique stacking capabilities with long distance stacking on standard 100 Gbps QSFP ports up to 10 km and up to 12 units to simplify management and ease network deployment
- Redundant uplink/stacking ports
- Stack level ISSU for continuous operations
- Hot-insertion/removal of stack members to avoid service interruption
- IPv4 and IPv6
- BGP, OSPF, VRRP, PIM, PBR
- VRF
- RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management and network automation
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 1020 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 48 |
| 1 GbE SFP Ports, quantity, maximum | 48 |
| 10 GbE SFP+ Ports, quantity, maximum | 24 |
| 1/2.5 GbE RJ45 Ports, quantity, maximum | 36 |
| 1/2.5/5/10 GbE RJ45 Ports, quantity, maximum | 12 |
| 40 GbE QSFP Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 2000 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 2400 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| MACsec | Yes |
| BGP | Yes |
| Reversible Airflow Option | Yes |
| VxLAN | Yes |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 1020 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 48 |
| 1 GbE SFP Ports, quantity, maximum | 48 |
| 10 GbE SFP+ Ports, quantity, maximum | 24 |
| 1/2.5 GbE RJ45 Ports, quantity, maximum | 36 |
| 1/2.5/5/10 GbE RJ45 Ports, quantity, maximum | 12 |
| 40 GbE QSFP Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 2000 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 2400 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| MACsec | Yes |
| BGP | Yes |
| Reversible Airflow Option | Yes |
| VxLAN | Yes |
