760224113 | 360DMis-12LC-WB

Base Product: G2-MODULES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

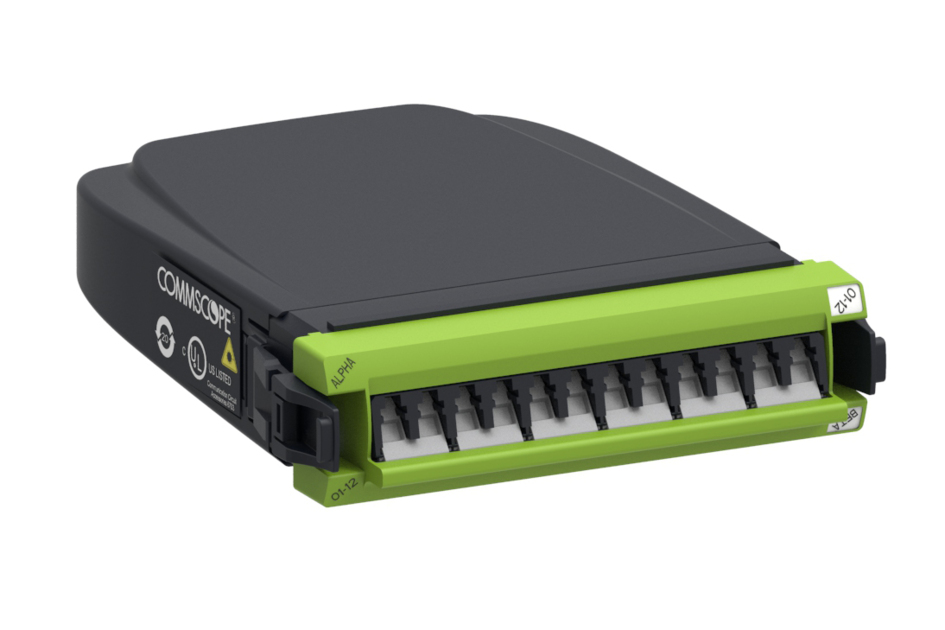

G2 LL Multimode OM5 MPO 12 distribution module, 12 LC to 1x12f MPO pinned, internal shutters

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand InstaPATCH® 360
Product Series G2

General Specifications

Functionality Breakout
Color, front Lime green
Color, rear Gray
Interface, front LC/UPC
Interface, rear MPO
Interface Feature, rear Key up/up | Pinned
Polarity Method B
Shuttered Yes
Total Fibers, quantity 12

Dimensions

Height 25.51 mm | 1.004 in
Width 95.91 mm | 3.776 in
Depth 119.69 mm | 4.712 in

Optical Specifications

Fiber Mode Multimode
Fiber Type OM5
Insertion Loss, maximum 0.47 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard CE | CSA | UL

Packaging and Weights

Packaging quantity 1
Weight, net 0.095 kg | 0.209 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant/Exempted
UK-ROHS Compliant, Compliant/Exempted
