CL-0820-U
Base Product: CABLE-LADDER

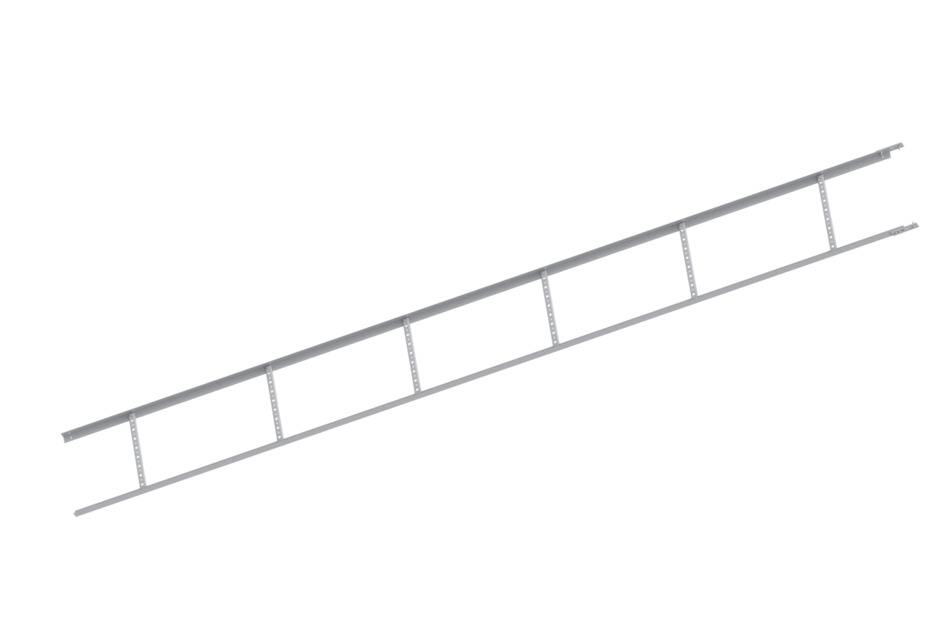

Universal Cable Ladder Kit, 26 in x 20 ft, 8-hole rung
Specifications
Product Classification
| Product Type | Ladder kit |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Cable Runs, quantity | 8 |
| Mounting | Round and angle legs |
Dimensions
| Width | 660.400 mm | 26 in |
| Length | 6096 mm | 240 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Attachment kits | Ladder | Splice plates |
| Packaging quantity | 1 |
| Weight, net | 50.9 kg | 112.215 lb |
Product Classification
| Product Type | Ladder kit |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Cable Runs, quantity | 8 |
| Mounting | Round and angle legs |
Dimensions
| Width | 660.400 mm | 26 in |
| Length | 6096 mm | 240 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Attachment kits | Ladder | Splice plates |
| Packaging quantity | 1 |
| Weight, net | 50.9 kg | 112.215 lb |
