SF-MONO-AMK4-001
Base Product: MOUNT-ACCESSORIES

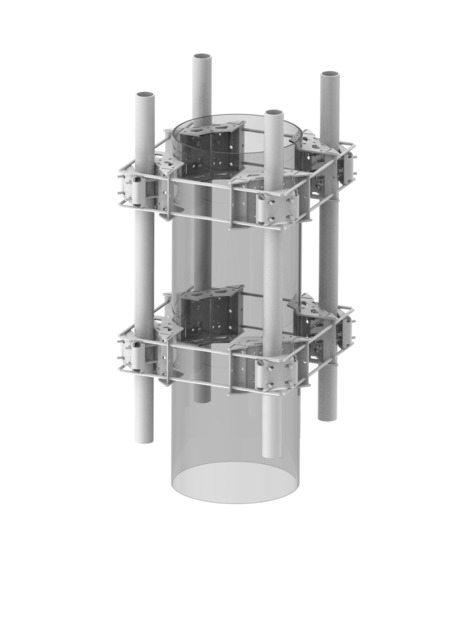

Mount Conversion Kit - enables mounting of (4) SFG2x Tower Sector Frames to MC-RM1030-4 Ring Mounts (Includes Ring Mounts - Sector Frames ordered separately)
Specifications
Product Classification
| Product Type | Ring mount |
| Product Series | G2 |
General Specifications
| Mounting | Monopole, 254–1270 mm (10–50 in) OD |
| Pipe, quantity | 4 |
| Sectors, quantity | 4 |
Dimensions
| Pipe Length | 2133.600 mm | 84 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Mounting hardware | Pipes | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 456.922 kg | 1007.34 lb |
Product Classification
| Product Type | Ring mount |
| Product Series | G2 |
General Specifications
| Mounting | Monopole, 254–1270 mm (10–50 in) OD |
| Pipe, quantity | 4 |
| Sectors, quantity | 4 |
Dimensions
| Pipe Length | 2133.600 mm | 84 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Mounting hardware | Pipes | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 456.922 kg | 1007.34 lb |
